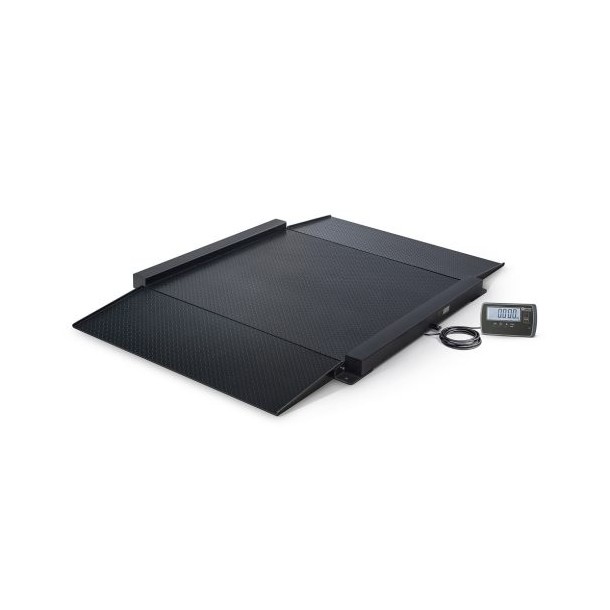

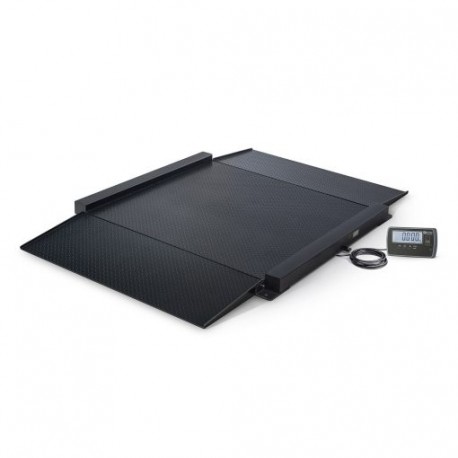

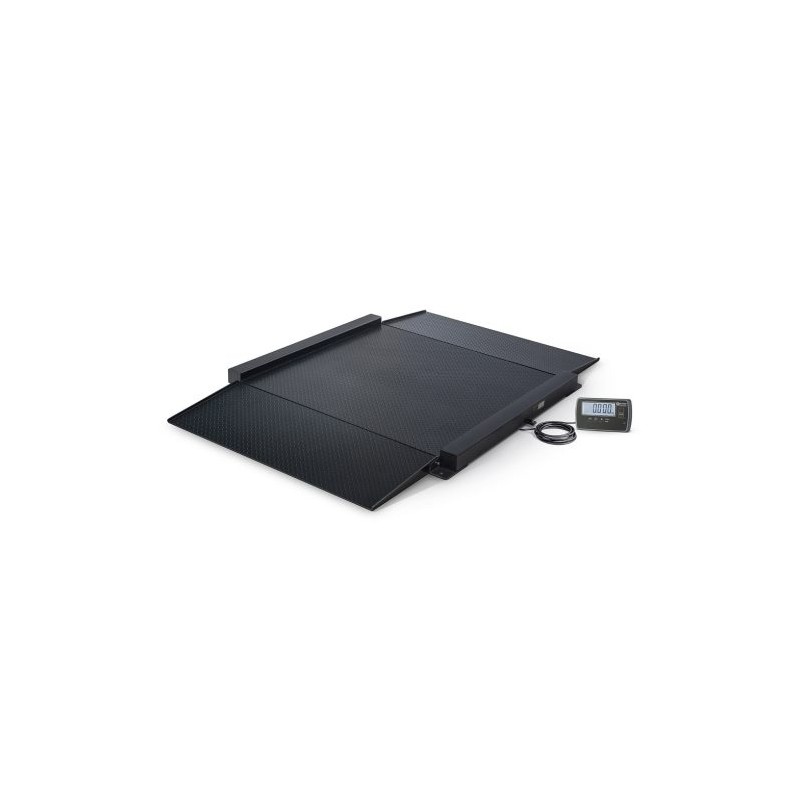

DF Series platform scales have a very low profile and are modularly designed to meet a wide range of requirements. These platforms are made from 4 mm treaded steel and can be used individually or in combination with ramps and side frames, depending on needs.

Scales in this series are ideal for confined spaces or situations requiring frequent relocation of the platform. The main advantages of this type of scale are compact dimensions and mobility, without compromising robustness and safety in use.

Designed for industrial and commercial use, these scales are successfully used in vehicles or logistics centers, where rapid weighing of goods is needed and space does not allow for larger installations.

DF Series scales are extremely versatile. They can be used in combination with a ramp and side frame, a configuration that occupies minimal space—optional ramps are only 500 mm long—and provide operational safety. If space allows, the platform can be equipped with two ramps, facilitating the handling of goods, for example within a production process.

These platforms can be equipped with various communication options adapted to the specific requirements of the application. Examples include 4–20 mA automation modules, Ethernet modules, additional memory, real-time clocks with independent power, receipt and label printers, or batteries for long-term autonomous use.

DF Series platform scales benefit from the advanced features of the indicator units they are equipped with, enabling their use in complex applications. They can issue weighing receipts, connect to PCs or other peripherals, offering increased flexibility and efficiency in various operational processes.

Technical specifications:

• Precision class: III

• Dimensions: 1500 x 1500 mm

• Reinforced platform made from 4 mm treaded steel

• Structure made from welded rectangular steel tube

• Side frames for load safety

• Finish: electrostatic powder coating

• Four EP-4A load cells, OIML certified

• Adjustable anti-slip feet

• EU type approval: 10,000e, 0.3 µV/d

• Standard configuration includes intelligent Si10 indicator unit

• Protection class: IP30

• Programmable multicolor backlighting

• Touch keypad with 6 capacitive keys

• Mounting: column, wall, or desk with adjustable orientation

• Power supply: 100–240 V AC with automatic regulation

• Interface: 2 x RS232

• Junction box: ABS

• Optional Li-ion battery with separate access (battery replacement does not require service visit)

• Factory metrological verification

• CE certified and compliant with OIML R-76 / EN 45501 standards

• Compatible with all current models of indicator units and thermal printers

Accessories and options:

• Optional access ramps

• Optional side frames

• Optional movable indicator arm

Transport not included.
