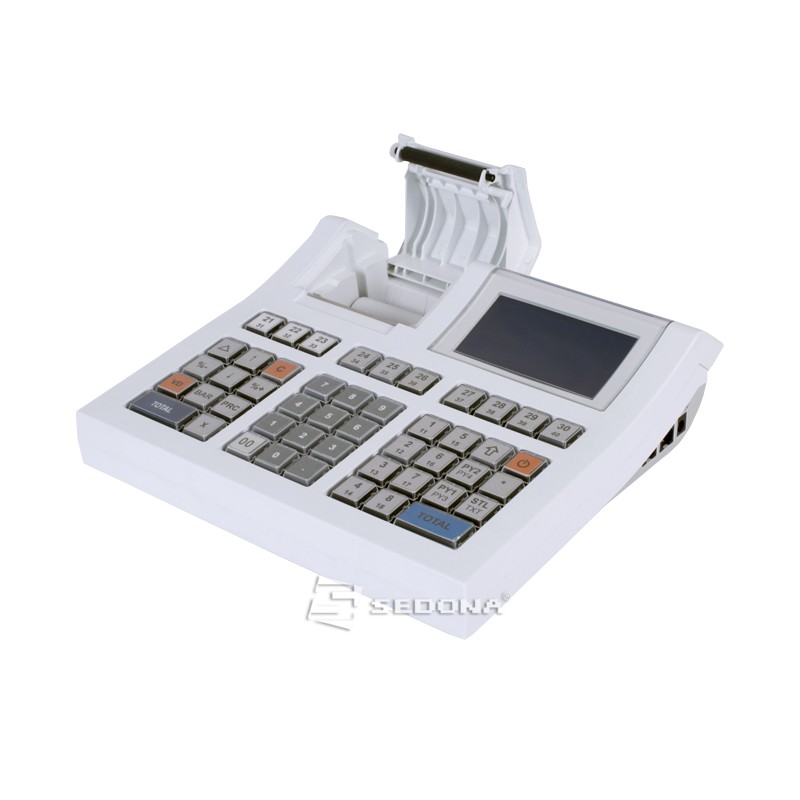

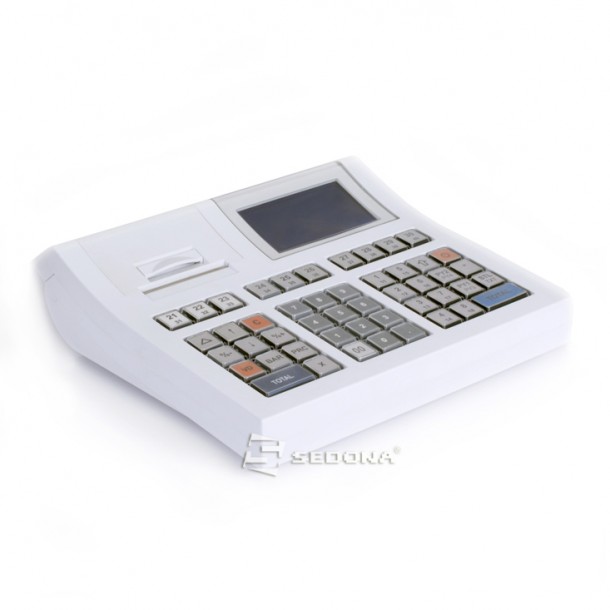

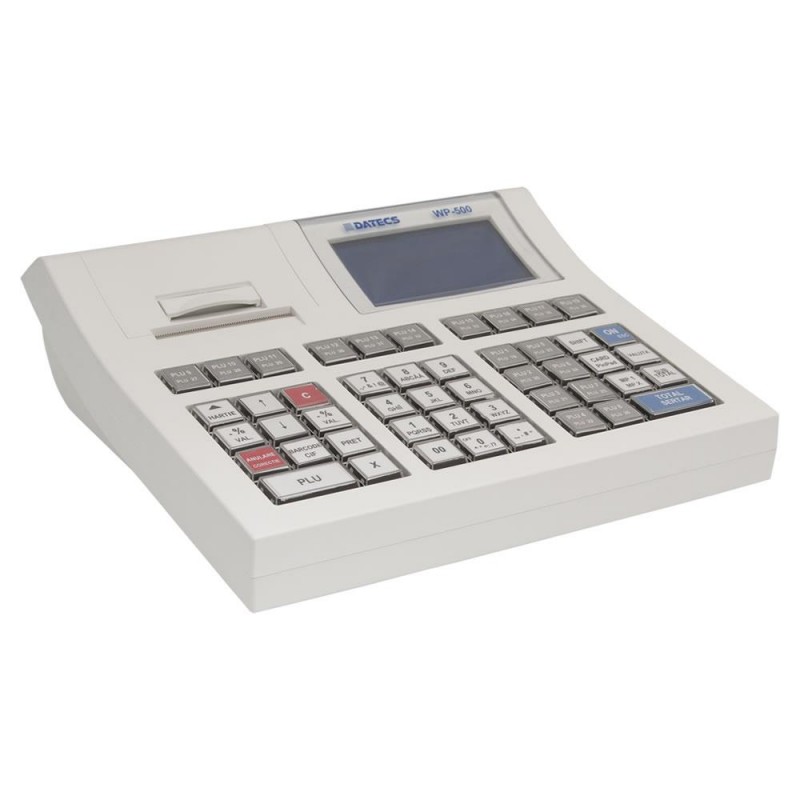

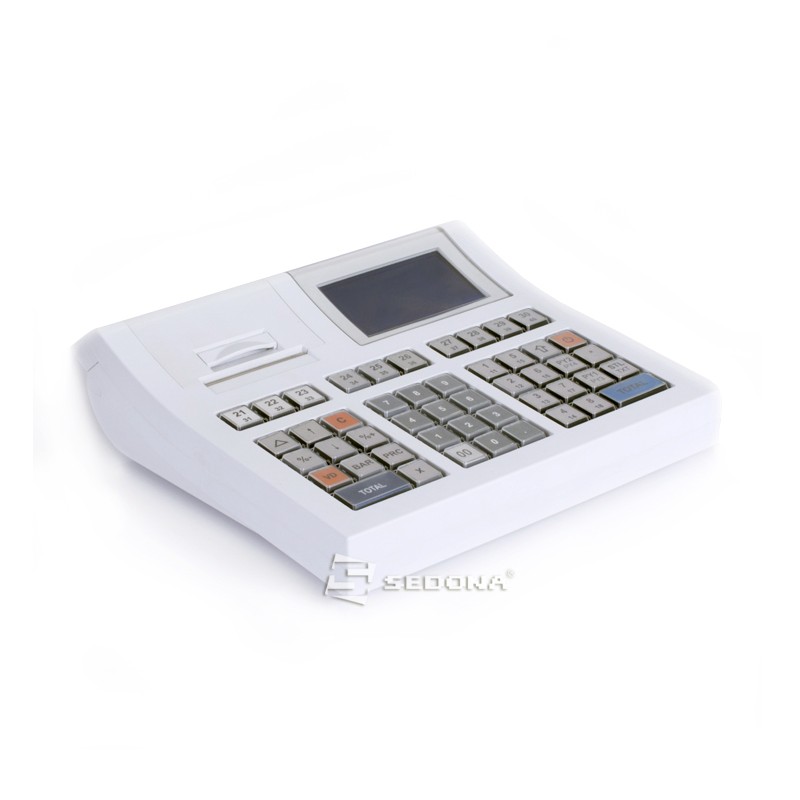

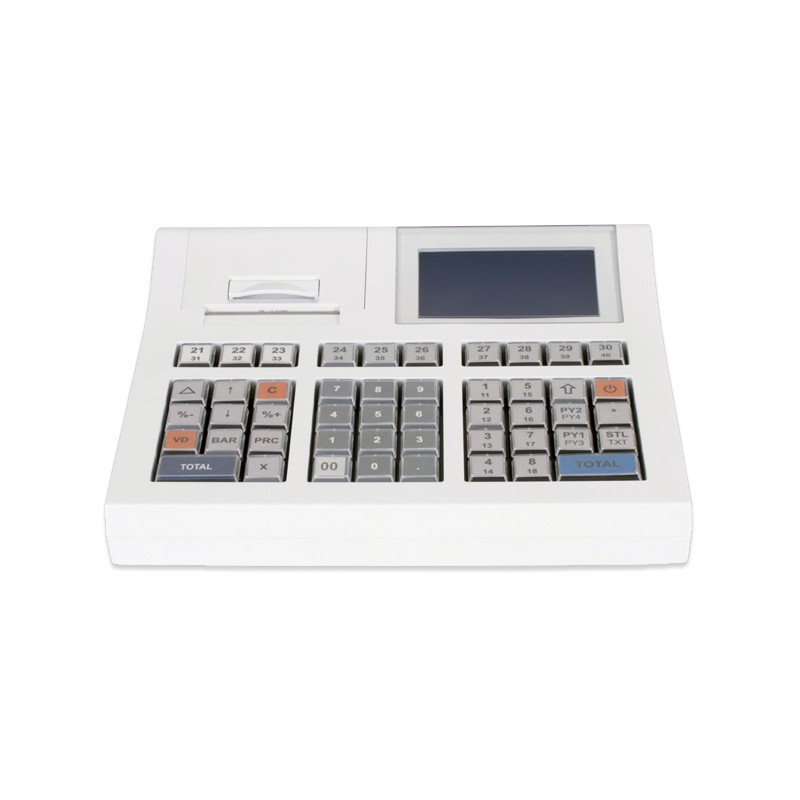

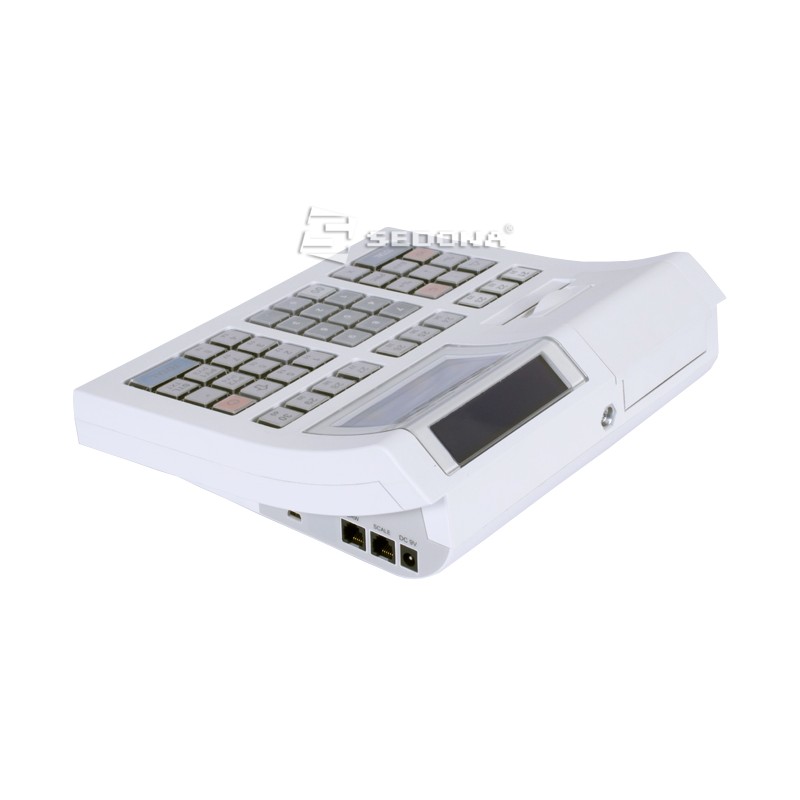

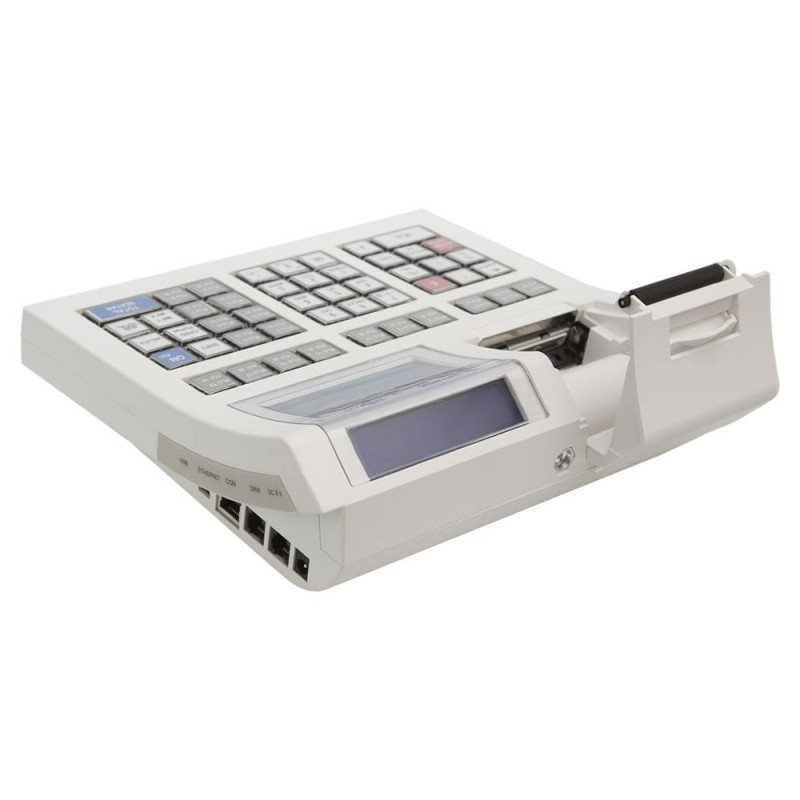

Cash Register with Electronic Journal, 2018 Model, Approved in Compliance with Current Legislation.

7-line display; solid 48-key keyboard; 36 PLU items with quick access.

One LAN port + 1 mini USB port + 2 serial ports. Built-in communication modem.

Optional Bluetooth. Optional battery.

Barcode scanners can be connected via the RS232 port, but they require separate power supply.

The cash register with built-in Bluetooth kit allows connection of Bluetooth barcode scanners.

Uses paper rolls 58 mm wide and 40 m long (50 mm diameter).

Power supply:

• DC 9V / 5A adapter, input 100-240V 50-60Hz;

• Optional Li-Ion battery 7.4V 2000mA/h.

Compatible with batteries from other Datecs cash register models (such as DP50, DP05, DP25).

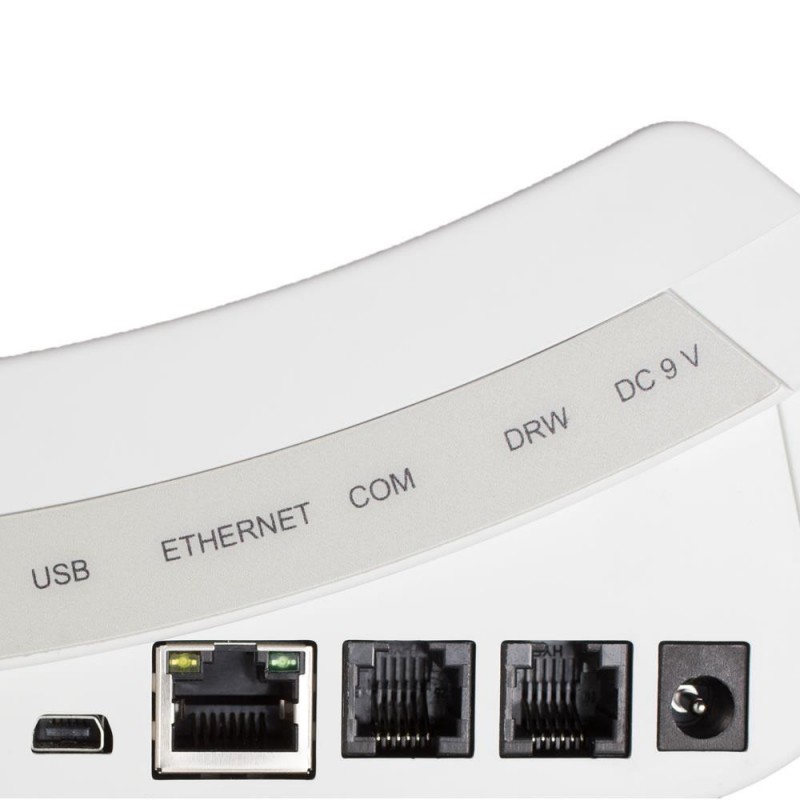

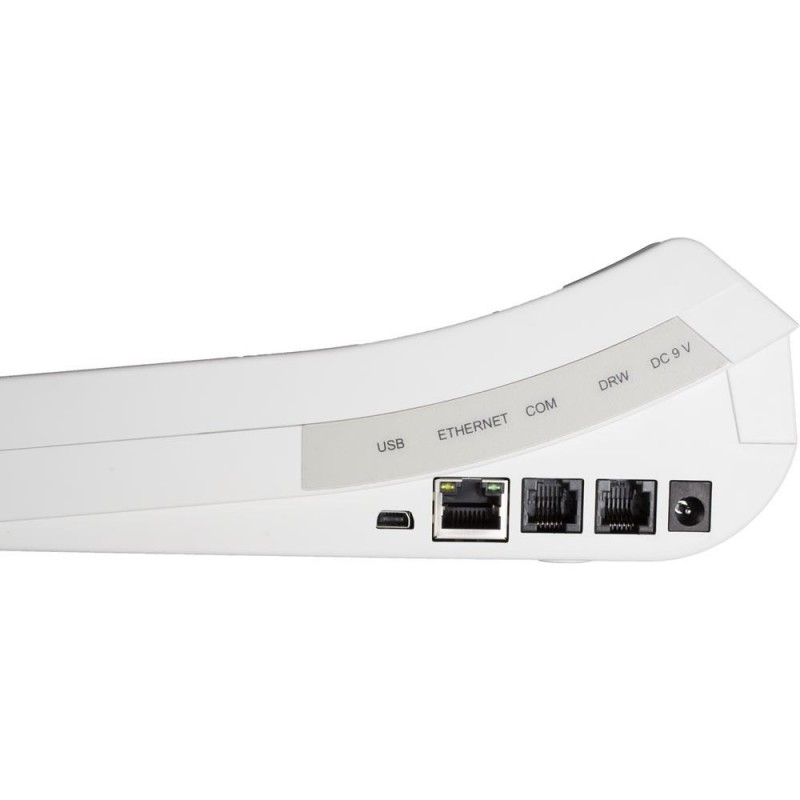

Connectivity interfaces:

• 1 x LAN (RJ45);

• 1 x mini USB;

• 1 x cash drawer (RJ45);

• 1 x RS232C for PC, scale, or other peripherals;

• Built-in GSM / GPRS modem;

• Optional: Bluetooth.

Possible connection to Datecs card payment acceptance device.

PC communication allows:

• Programming, reading, and generating reports from the PLU database;

• Configuring AMEF parameters;

• Issuing fiscal receipts, closing reports, as well as non-fiscal documents (such as invoices).

Consumables: Thermal paper 57 mm wide, thickness 60–72 µm, roll diameter up to 50 mm (40 m length).

PLU item names up to 72 characters. Characters per line: 32 or 42.

Graphic printing: Graphic logo or barcodes, size 384 х 96 dots (max. 384 x 336 dots).

Romanian language keyboard.

User-friendly menu, in Romanian.

PLU memory: 100,000 items.

Tax types: 5 programmable VAT rates; 1 x VAT exempt; 1 x Other Taxes.

Departments: Up to 99.

Number of operators: 30.

Payment methods:

• Cash (default);

• Cash advance (cash back);

• Card;

• Voucher;

• Credit;

• Gift vouchers;

• Meal vouchers;

• Other programmable methods.

Electronic journal: Yes – 16GB microSD card (supports microSD cards up to 32GB).

Fiscal memory: Non-volatile, 2,500 daily closure reports.

Cryptographic module: EAL 5+.

Electronic signature: X.509.V3, RSA 2048-bit.

Supported barcode types: EAN8, EAN13, Code128, interleaved 2of5, QR code.

Printing speed: 12 lines/second.

Thermal printer: Seiko LTP01-245-05 or EPSON M-T173V.

Operator display: Graphic LCD, 7 lines x 30 characters.

Customer display: Graphic LCD, 2 lines x 22 characters.

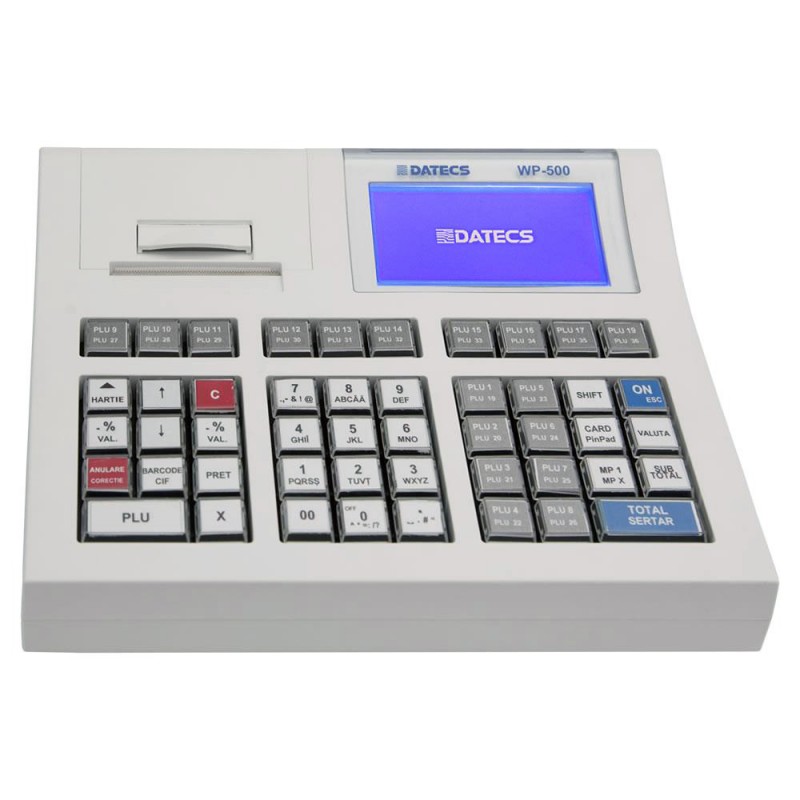

Keyboard: 48 keys.

Internal clock and calendar battery: Ensures operation for 90 days after power disconnection.

Operating temperature and humidity: -10°C to +40°C / relative humidity without condensation 40–80%.

Dimensions: 234 (W) x 215 (D) x 73 (H) mm.

Weight: 1 kg (including paper roll).

Casing color: black or white. To check available stock colors, please contact us.

Price includes: Service logbook, special register, adapter, RS232 connection cable.

Optional accessories: USB connection cable; Ethernet connection cable; miniUSB memory stick (for electronic journal).

Mandatory plates “Keep the receipt” and “Consumer Protection” are provided free of charge upon request.

Made in Bulgaria.
