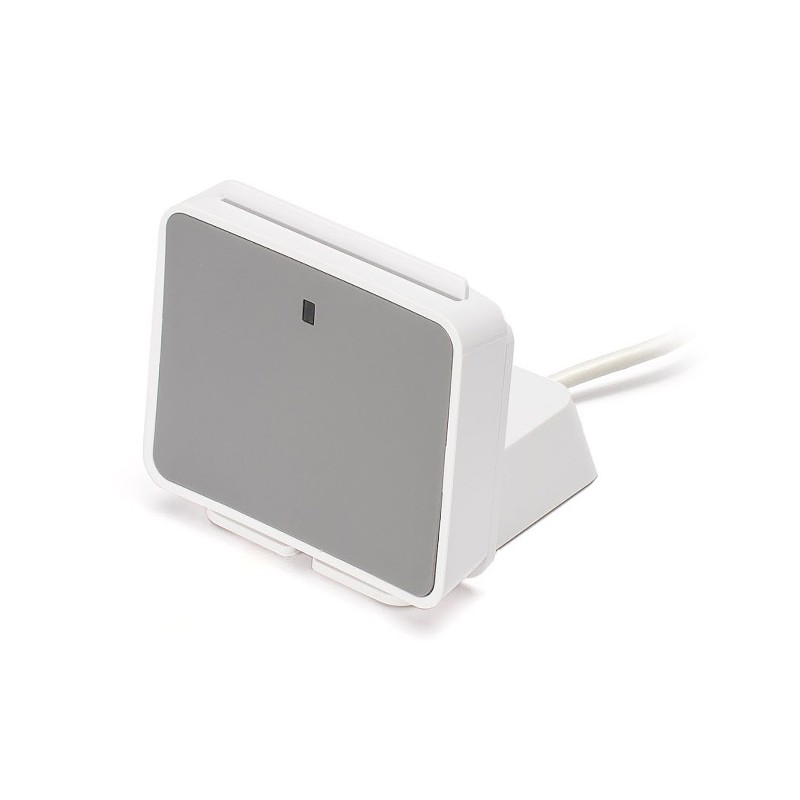

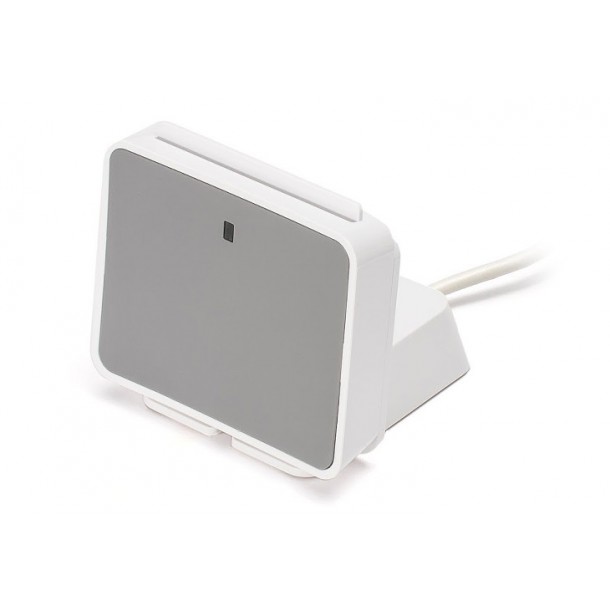

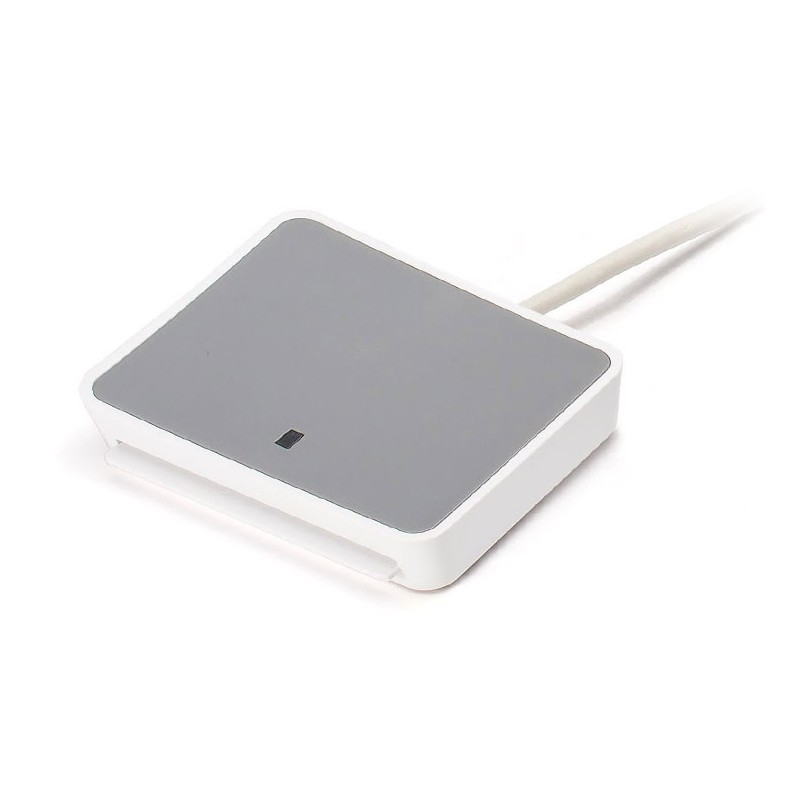

uTrust 2700 R Contact Smart Card Reader

The Identiv uTrust 2700 R is a USB-connected contact smart card reader suitable for a wide range of applications requiring security. The device is compliant with major industry standards, including ISO/IEC 7816, USB CCID, PC/SC and Microsoft WHQL, and works with most contact smart cards and PC operating systems.
Full support and compliance with EMV 2008 and GSA FIPS 201 allow for use in applications requiring a high level of security and data protection.

The reader combines a compact and ergonomic design with a data transmission rate of up to 600 kbps, including support for TA1=97, reducing transaction times. Identiv SmartOS™ specific features ensure full compatibility with all major contact smart card types.

uTrust 2700 R is suitable for applications such as network authentication, Windows authentication and Single Sign-On (SSO), banking applications and cashless payments, as well as for scenarios requiring a high level of security in public administration.

Features:

Host Interface

Host Interface: USB 2.0 CCID (compatible with USB 1.1 / 3.0)
Communication Speed: 12 Mbps (USB 2.0 Full Speed)
Smart Card Interface

Supported Standards:
• ISO/IEC 7816 Part 1 to 4
• EMV 2011 Version 4.3 Level 1
Supported Card Chips:
• Compatible with all ISO/IEC 7816 compliant smart card chips
Smart Card Protocols:
• T=0, T=1
Smart Card Interface Speed:
• Up to 600 kbps (card dependent)
• TA1 = 97
Card Clock Frequency:
• ISO/IEC 7816 compliant up to 5 MHz
• Operates up to 16 MHz
Types of Supported smart cards:
• 5V, 3V and 1.8V, classes A / B / C according to ISO/IEC 7816
Smart card power supply:
• 60 mA for class A
• 55 mA for class B
• 35 mA for class C
Smart card detection:
• Card presence detection switch
• Automatic power on/off when card is inserted/removed
• Short circuit protection
Card size

Size: ID-1
Contact type:
• 8-pin ID-1 sliding contact socket
• C4/C8 support
• Card detection switch
Driver and Software

PC/SC Driver: Compliant with PC/SC specification Ver. 2.01.14 for:
• Windows® 7/8 (32 and 64 bit); Windows® Server 2003/2008/2012
• MacOS 10.6.x, 10.7.x, 10.8.x, 10.9.x
• Linux 2.6.x (32 and 64 bit)
Software:
• PC/SC API Interface
• CT-API Interface (via wrapper over PC/SC)
• M-Card API Interface (via wrapper over PC/SC)
Operating Conditions

Power Supply: USB bus-powered
Power Consumption:
• < 6 mA without card
• 25 mA with card
Dimensions and Weight

Dimensions:
• 70 x 60 x 16 mm / 2.756 x 2.362 x 0.629 inches
• 70 x 63 x 62 mm / 2.756 x 2.480 x 2.441 inches (packaged)
Weight:
• 66 g ± 5% / 0.15 lb ± 5%
• 204 g ± 5% / 0.45 lb ± 5% (packaged)
Temperature and humidity ranges

Operating temperature: 0°C to +50°C / +32°F to +122°F
Storage temperature: -20°C to +60°C / -4°F to +140°F
Operating humidity: Up to 95% RH (non-condensing)
Durability

Sliding contact: Up to 100,000 card insertions
MTBF (Mean time between failures): Approximately 7 million hours
Connector and indicators

Cable: 1.5 m USB cable with USB Type A connector
Status indicator: LED
Firmware

Firmware: SmartOS™
Remote firmware update: No is possible
Certifications and Compliance

Systems/Standards:
• EMV 2008 Version 4.2 Level 1
• ISO/IEC 7816
• USB 2.0 Full Speed
• CCID
• Microsoft® WHQL
Regulations/Environments:
• CE, FCC, UL94, UL60950
• VCCI, ICES, ANZ, HBCI, GSA APL
• RoHS2, REACH, WEEE
